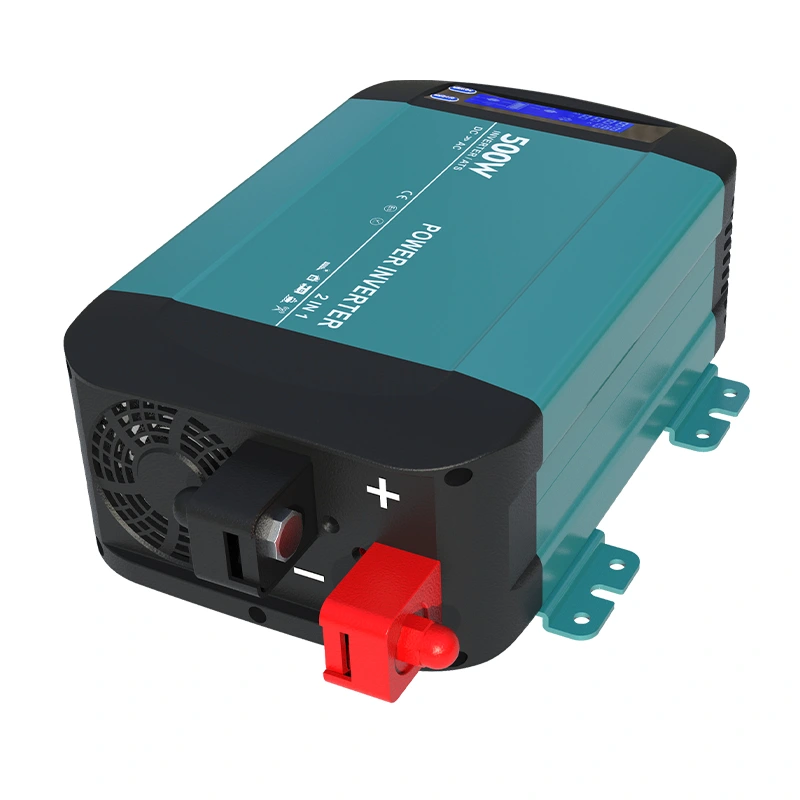

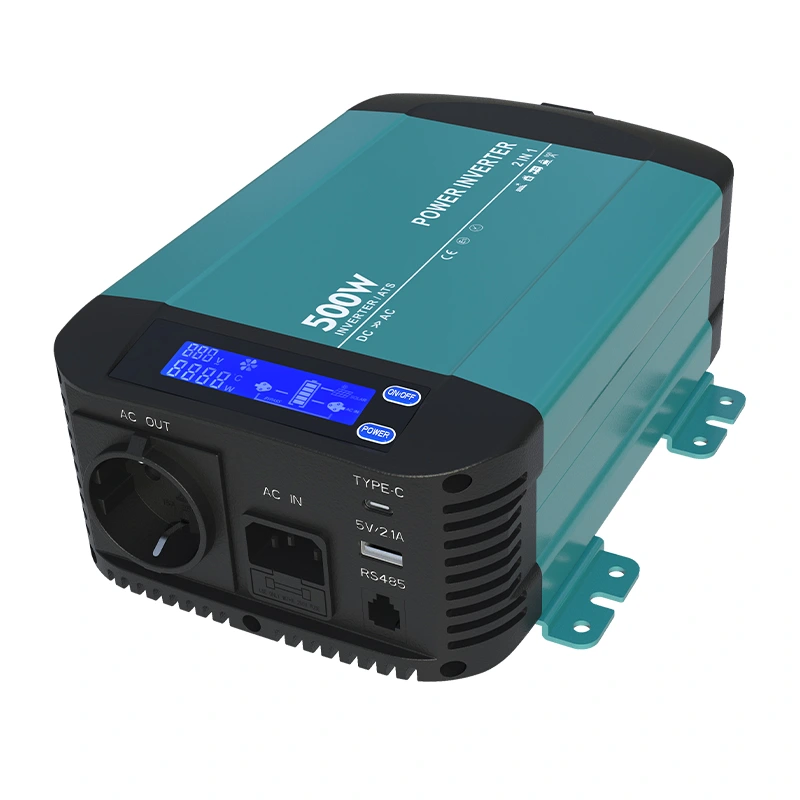

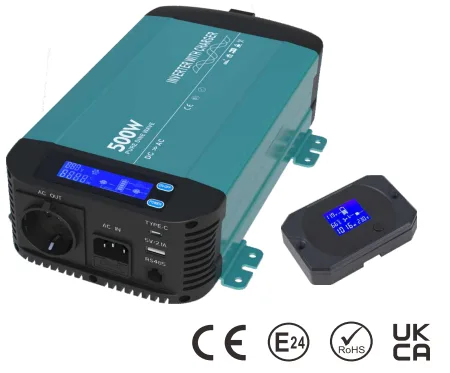

500w Pure Sine Inverter Cum Charger HK500PC

Model:HK500PC

Certus es quiescere potes nativum 500w sine aqua munda Inverter emere cum disco HK500PC ex Kosun. Expectamus cooperantem tibi, si plura scire vis, modo consulere potes, respondebimus tibi in tempore!

Mitte Inquisitionem PDF Download

depictio producti

Sequens est introductio optimae Qualitatis Pure Sine Wave Inverter, sperans auxilium te melius intelligere 500w Pure Sine Wave Inverter Cum Charger HK500PC. Exspectate clientes novos et veteres pergere ad cooperandum nobis ad melius futurum creandum!

Features:

● Purus sine fluctus output (THD <5%)

Scelerisque imperium fan

High Eficiency Sursum ad XCII%

Instructa in ATS ac AC circuit ruptor

Translatio temporis minus quam 16ms

●USB:5V / 2.1A / Type-C:Max 35W

RS-485 communicatio.

Input & Output plene solitudo

Input Praesidium: Reverse verticitatem (Fuse) / sub intentione / Per intentione

Output Praesidium: Short Circuit / ONERO / Plus Calor / Plus intentione

EXEMPLUM		HKC500P-112	HKC500P-124	HKC500P-212	HKC500P-224
Modus inverter
Input	Normalis intentione	12VDC	12VDC	12VDC	12VDC
	Input Voltage Range (±0.5V)	10.8~16VDC	21.6~32.0VDC	10.8~16VDC	21.6~32.0VDC
	50/60Hz ± 1Hz	16VDC	32VDC	16VDC	32VDC
	Input Under-Voltage Praesidium (± 0.5V)	10VDC	20VDC	10VDC	20VDC
	Input Under-Voltage Admonitio (± 0.5V)	10.8VDC	21.6VDC	10.8VDC	21.6VDC
	Non Current Lond	<0.4A	<0.2A	<0.4A	<0.2A
Output	Continua Output Power	500W±5%
	Surge Power	Load 1000W(2 Sec)
	Frequentia	50/60Hz ± 1Hz
	Output intentione	100/110/115/120VAC±10%		200/220/230/240VAC±10%
	Min.Efficiency (plena Lond)	89%	89%	89%	89%
	Output Waveform	Purus sine unda (THD<5%)
Praesidium	Input Praesidium	Per / sub intentione, verticitatem inversa (Fuse internus)
	AC Output Praesidium	Brevis Circuit, ONERO
	AC Input Praesidium	30 Amp Circuit Breaker		16amp Circuit Breaker
	Temperatus praesidium	Shutdown
Patina Modus
AC input	Nominal intentione/Frequency	110VAC,50/60Hz;		230VAC,50/60Hz;
	Input intentione dolor	90~130VAC		180~260VAC
	Is dato Current dolor	50Hz:47~53Hz/60Hz:57~63 Hz
	Effectus (Max.)	>88%
	Virtus Factor Correctio (PFC)	>0.95(Max.)
DC Output	Is dato Current dolor	Max.10A	Max.5A	Max.10A	Max.5A
	Max.Output intentione	14.4VDC	28.8VDC	Max.14.4VDC	Max.28.8CDC
	Pugna Imperium (III-scaena altilium scutulas)	Mole / effusio /Float
Signum et Imperium	Imperium Panel remote (Libitum)	LCD propono
	Longinquus Imperium Terminal	RS485
	LCD propono	voltage, wattage
	Nullam Specification	30 Amp/120VAC@110V systema		16Amp/250VAC@230V system
Environment
Temperature Range	Full Load	0~+40℃;60℃@70% potentiae onus
	Repono	0℃~70℃
Umor dolor		Virtus Factor Correctio (PFC)
Refrigerium		Temperature & Lond Controlled Refrigerium Fan
alii	Dimensio (W×H×D)	309×182×87mm
	Pondus	2.6KG
	Communication Portus	RS-485(RJ-11 type iungo), Aer (libitum)

Per productum 5.5kg;Per Carton 2pcs/10.9kg

EXEMPLUM:HKC500P

dato curvo
