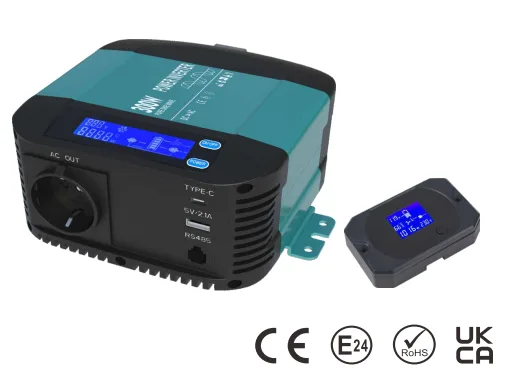

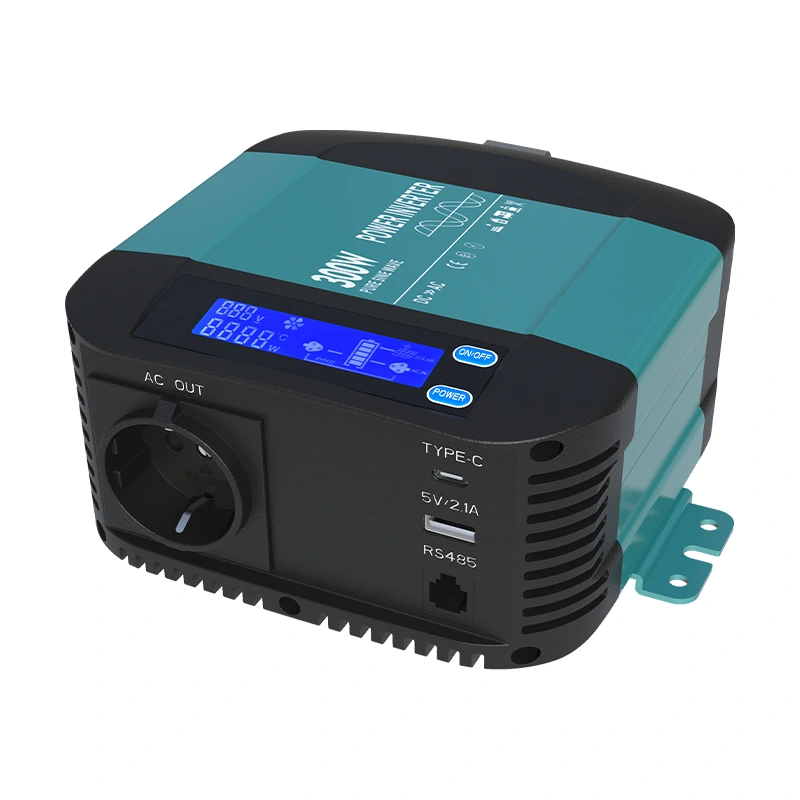

300w Pure Sine Inverter HK300P

Model:HK300P

Scire potes qui amet 300w Sine unda Inverter HK300P emere a Kosun purum. Expectamus cooperantem tibi, si plura scire vis, modo consulere potes, respondebimus tibi in tempore!

Mitte Inquisitionem PDF Download

depictio producti

Sequens est introductio magnae qualitatis: Pure Sine Wave Inverter, sperans adiuvare te melius intelligere 300w Pure Sine Wave Inverter HK300P. Exspectate clientes novos et veteres pergere ad cooperandum nobis ad melius futurum creandum!

Features:

Purus sine fluctus output

Systema solaris, effect.

Rmote controller RS485 Connetor

Input & Output plene solitudo

Temperate imperium refrigerium fan

Built in antecessum microprocessor providere amica interface

Input praesidium: Reverse verticitatem (Fuse) / sub intentione / Plus intentione

Output praesidium: Short Circuit / ONERO / Plus Calor

E13/CE/RoHs probatus

EXEMPLUM		HK300P-112	HK300P-124	HK300P-212	HK300P-212
Output	AC Voltage	100/110/115/120VAC		200/220/230/240VAC
	AC Regula	±10%
	Rated Power	300Watt
	Surge Power (I sec)	600Watt
	Forma output unda	Purus sine Undo (THD<5%@ Normal Lond)
	Frequentia	50/60Hz ± I occasu per officinam
Input	DC Voltage	12VDC	24VDC	12VDC	24VDC
	Voltage Range	10.5-16VDC	21.0-32.0VDC	10.5-16VDC	21.0-32.0VDC
	NO Load Current	≤0.35A	≤0.17A	≤0.35A	≤0.17A
	Elficiency(Min.)	89%	89%	89%	89%
	Fuse	45A×1	45A×1	45A×1	45A×1
Praesidium	Input sub-Voltage Praesidium	10.5VDC±0.2	21.0 VDC±0.5	10.5VDC±0.2	21.0 VDC±0.5
	Input Under-Voltage Recuperatio	12.5VDC±0.2	25.0 VDC±0.5	12.5VDC±0.2	25.0 VDC±0.5
	Input Over-Voltage Praesidium	16VDC±0.2	32.0 VDC±0.5	16VDC±0.2	32.0 VDC±0.5
	Input Over-Voltage Recuperatio	15.8VDC±0.2	31.6VDC±0.5	15.8VDC±0.2	31.6VDC±0.5
	Plus Temperature	Shutdown output voltage.restart recuperare
	Output Short	Shutdown output intentione, sileo recuperare
	Plus Temperature	Calor descendens temperatus super 75℃±2℃ shutdown output voltage
	DC Input Reverse Polarity	Per fuse aut per Mosfet
Environment	Operans Temp.	0~+40℃;60℃@70% potentiae onus
	Repono Temp	0℃-+70℃
	Repono Temp. Humiditas	600Watt
Imperium & Signum	Accessorium (Libitum)	remotis Imperium
	LCD Display	Input voltage/output wattage/temerate/output voltage / refrigerationem / opus status
	Longinquus Imperium desinit	R485
alii	Dimensio (W×H×D)	259×182×87mm
	Product pondus	1.6kgs
	stipare	Per productum 2kg, per lobortis V quam at pede / 10kg
	Refrigerium	Temperatus refrigerationem fan
	Applicationem	domum et officium adjumenta, portatilem potestatem armorum, vehiculum, Phasellus et off-eget Systema solaris, effect.
Nota	1.Value experimentum initus intentionis ad 12.8V/25.6V/50.4V;2. Omnes parametri mensurantur in onere aestimati, 25 temperatus ambientis; 3. Specificationes mutationibus obnoxiae sunt sine praevia notitia pro ulteriori emendacione productorum.

Mechanica Drawings:(259x182x87mm)

EXEMPLUM: HK300P
