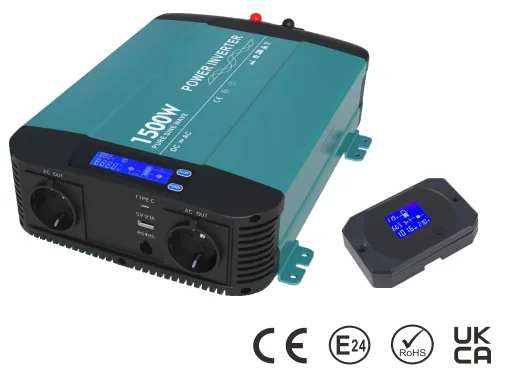

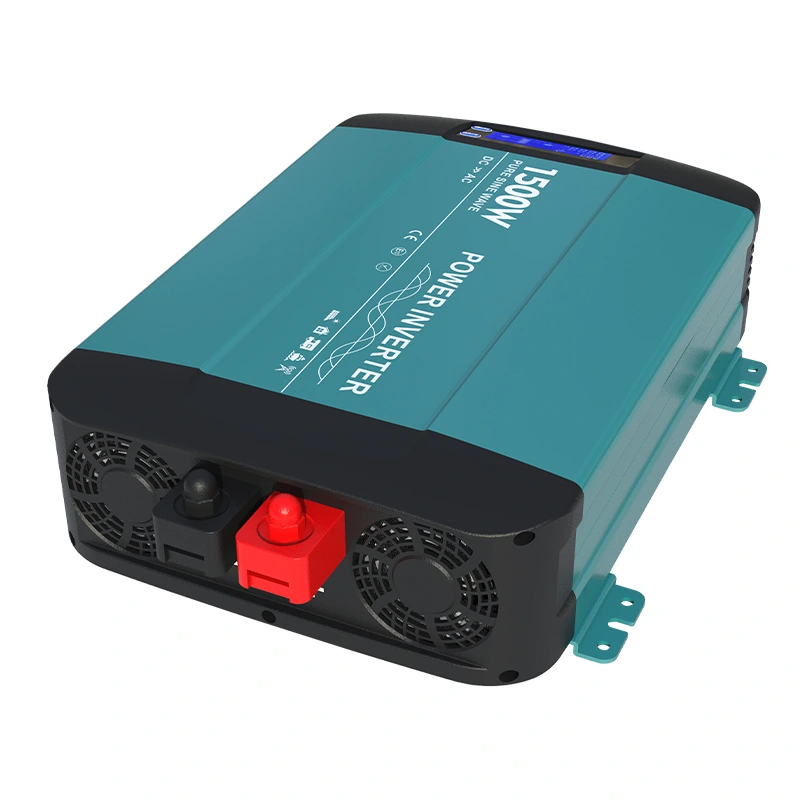

1500w Pure Sine Wave Inverter HK1500P

Model:HK1500P

Cum annos experientiae in productione Pure Sine Wave Inverter Kosun amplam Sine Wave Inverter supplere potest. Qualitas magna 1500w Pure Sine Wave Inverter HK1500P multae applicationes occurrere possunt, si opus est, opportuna opera nostra de ea accipe.

Mitte Inquisitionem PDF Download

depictio producti

Talis est introductio optimae qualitates Pure Sine Wave Inverter, sperans te adiuvare melius intelligere 1500w Purum Sine Wave Inverter HK1500P. Exspectate clientes novos et veteres pergere ad cooperandum nobis ad melius futurum creandum!

Features:

● Purus sine unda output.

Systema solaris, effect.

Remote controller R S485 Connetor

Input & Output plene solitudo

● Temperatura refrigerium moderata ventilabro.

Built in antecessum microprocessor providere amica interface

Input praesidium: Reverse verticitatem (Fuse) / sub intentione / Plus intentione

● Output praesidium: Short Circuit / ONERO / Plus Calor:

E13/CE/RoHs probatus

EXEMPLUM		HK1500P-112	HK1500P-124	HK1500P-212	HK1500P-224
Output	AC Voltage	100/110/115/120VAC		200/220/230/240VAC
	AC Regula	±10%
	Rated Power	1500Watt
	Surge Power (I sec)	3000Watt
	Forma output unda	Purus sine Undo (THD<5%@ Normal Lond)
	Frequentia	50/60Hz ± I occasu per officinam
Input	DC Voltage	12VDC	24VDC	12VDC	24VDC
	Voltage Range	10.5-16VDC	21.0-32.0VDC	10.5-16VDC	21.0-32.0VDC
	NO Load Current	≤0.63A	≤0.31A	≤0.63A	≤0.31A
	Elficiency(Min.)	89%	89%	89%	89%
	Fuse	45A×4	45A×2	45A×4	45A×2
Praesidium	Input sub-Voltage Praesidium	10.5VDC±0.2	21.0 VDC±0.5	10.5VDC±0.2	21.0 VDC±0.5
	Input Under-Voltage Recuperatio	12.5VDC±0.2	25.0 VDC±0.5	12.5VDC±0.2	25.0 VDC±0.5
	Input Over-Voltage Praesidium	16VDC±0.2	32.0 VDC±0.5	16VDC±0.2	32.0 VDC±0.5
	Input Over-Voltage Recuperatio	15.8VDC±0.2	31.6VDC±0.5	15.8VDC±0.2	31.6VDC±0.5
	Plus Temperature	Shutdown output voltage.restart recuperare
	Output Short	Shutdown output intentione, sileo recuperare
	Plus Temperature	Calor descendens temperatus super 75℃±2℃ shutdown output voltage
	DC Input Reverse Polarity	Per fuse aut per Mosfet
Environment	Operans Temp.	0~+40℃;60℃@70% potentiae onus
	Repono Temp	0℃-+70℃
	Repono Temp. Humiditas	600Watt
Imperium & signum	Accessorium (Libitum)	remotis Imperium
	LCD Display	Input voltage/output wattage/temerate/output voltage / refrigerationem / opus status
	Longinquus Imperium desinit	R485
alii	Dimensio (W×H×D)	279×252×88mm
	Product pondus	4.8kgs
	stipare	Per productum 5.5kg;Per Carton 2pcs/10.9kg
	Refrigerium	Temperatus refrigerationem fan
	Applicationem	domum et officium adjumenta, portatilem potestatem armorum, vehiculum, Phasellus et off-eget Systema solaris, effect.
Nota	1.Value experimentum initus intentionis ad 12.8V/25.6V/50.4V;2. Omnes parametri mensurantur in onere aestimati, 25 temperatus ambientis; 3. Specificationes mutationibus obnoxiae sunt sine praevia notitia pro ulteriori emendacione productorum.

Mechanica Drawings:(279x252x88mm)

EXEMPLUM : HK1 500P
