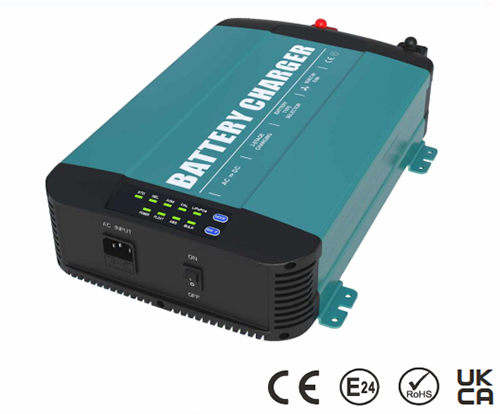

12v 100A Smart Battery Charger

Model:HK12100B

Scias posse quiescere nativus 12v 100A Smart Battery Charger from Kosun. Expectamus cooperantem tibi, si plura scire vis, modo consulere potes, respondebimus tibi in tempore!

Mitte Inquisitionem PDF Download

depictio producti

Sequens est introductio qualitatis princeps patina Pugna, sperans te melius intelligere 12v 100A Smart Battery Charger. Exspectate clientes novos et veteres pergere ad cooperandum nobis ad melius futurum creandum!

Features:

Universalis Ac input 90- 140V/180V-260V

Compatible cum Plumbo Acido, Li-ion, Gel et AGM gravida

High efficientia et alta reliability

Battery genus eligere

Protection: Per intentione / Plus Calor / Per Current

E13/CE/RoHs probatus

EXEMPLUM		HK12100B-110	HK12100B-220
Output	Type altilium	STD/GEL/AGM/CAL/LifePO4
	Latin Boost præcipe Voltage	14.6V+/-0.2V
	Vexillum Float præcipe Voltage	13.8V+/-0.2V
	Principalis Rated Current	100A	100A
	Principalis Output	0-100A	0-100A
	Pugna dato modo	3 -stage praecipiens facultatem (IUOU)
Input	Voltage Range	90-130VAC (refer to de-rating curva)	180-260V
	Frequentia Range	47-63Hz	47-63Hz
	Efficientia (Typogr.) at 230VAC	85%	85%
	AC Current (Typ.)	12.49A	6.24A
Praesidium	Pugna inversa	sic
	Plus intentione	sic
	Plus Temperature	Pugna Plus Temperature 75℃
Munus	DUXERIT signum	Monstra in altilium genus et opus status
	dato modo	Per Tactus switch eligere differentiam altilium generis
Environment	Laborans Nativ.	0-60℃ (ad de-rating curva)
	Plus Temperature	20-90% RH non-condensing
	Repono Temp., Humiditas	0-+85*℃,20-90% RH
Salus & EMC	Salus Signa	LVD Directive 2014/35/EU
	E-mark	EN 61000-3-3:2013+A1:2019+A2:2021
	ROHs	RoHS Directivum (EU) 2015/863 emendans Annex II ad Directivum 2011/65/EU
	Signa EMC	EN IEC 55014-1:2021
		EN IEC 55014-2:2021
		EN IEC 6100-3-2:2019/A1:2021; EN 61000-3-3:2013/A2:2021;
alii	Dimension(WxHxD)	289x252x88mm
	stipare	Per Carton 2 PCs/16kg
Nota	1. Omnes parametri non nominatim re mea certa ad 230VAC input, onus aestimatum et 25*C temperaturae ambientis. 2. Patina rubra componitur quae in apparatu finali instituetur. 3. Ante increpans, fac in patina altilium et specificationes pugnae compatiuntur.

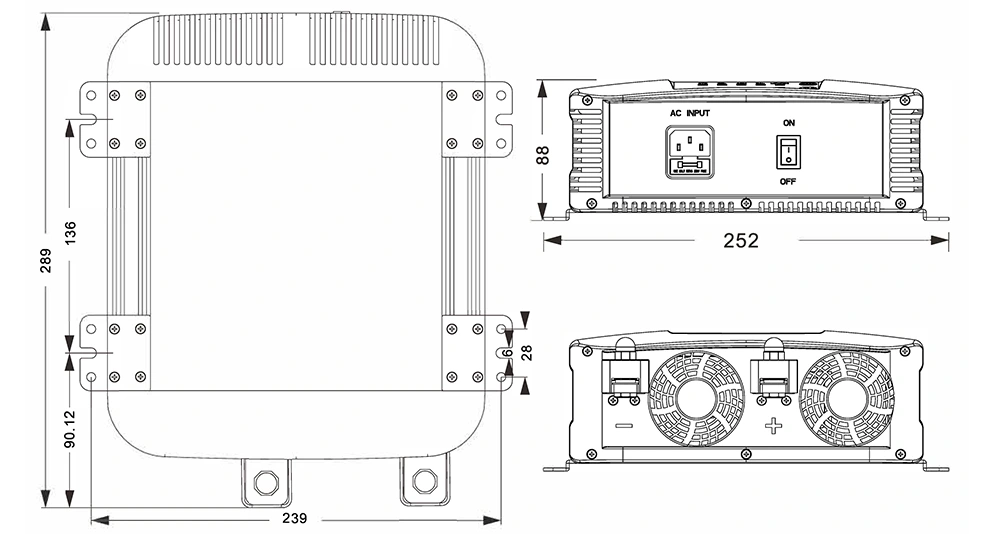

Mechanica Drawings:(289x252x88mm)

MODEL: HK12100B

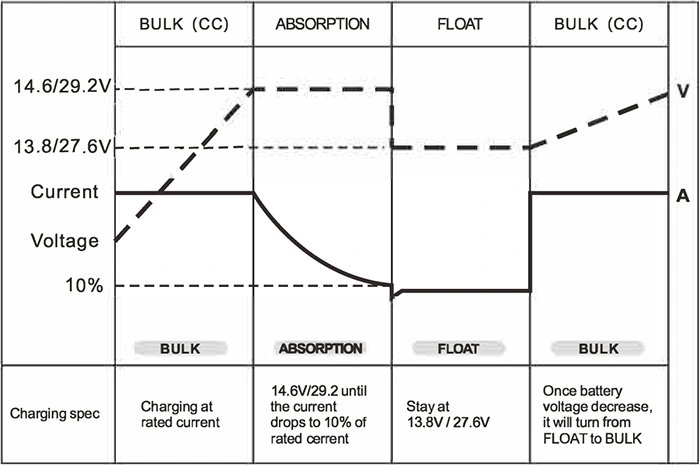

dato curvo

Is dato negotio

12V Patina Profecti
Type altilium	Mole/ effusio	Float
LiFePO4	14.6V
AGM	14.8V	13.8V
Calcium	15.0V	13.8V
STD	14.4V	13.4V
GEL	14.2V	13.2V
