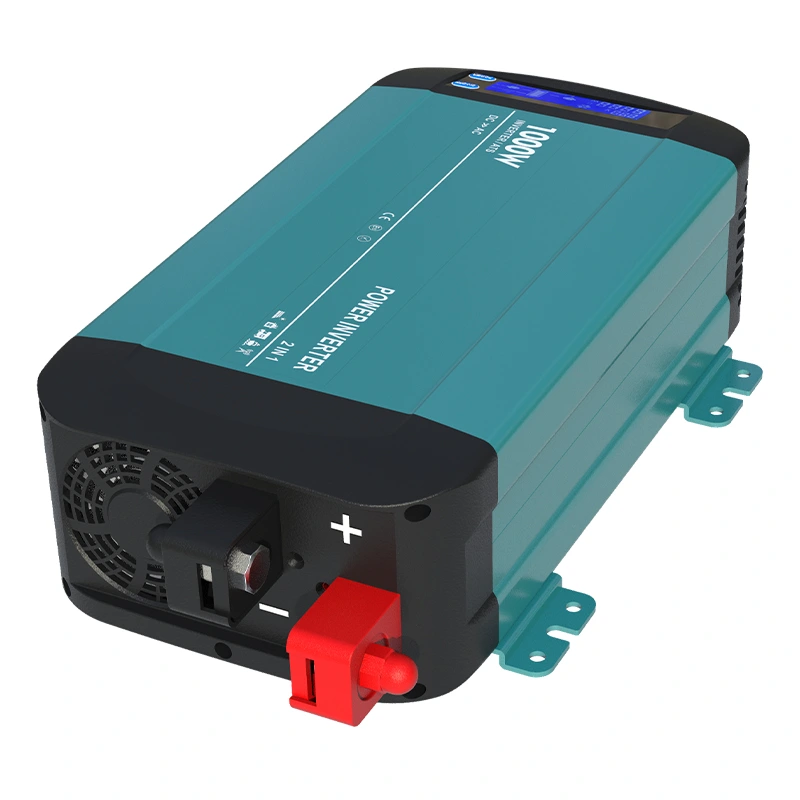

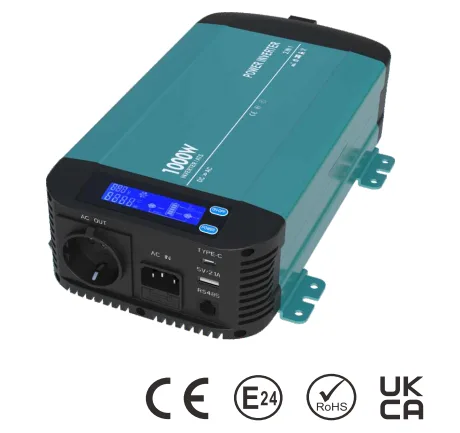

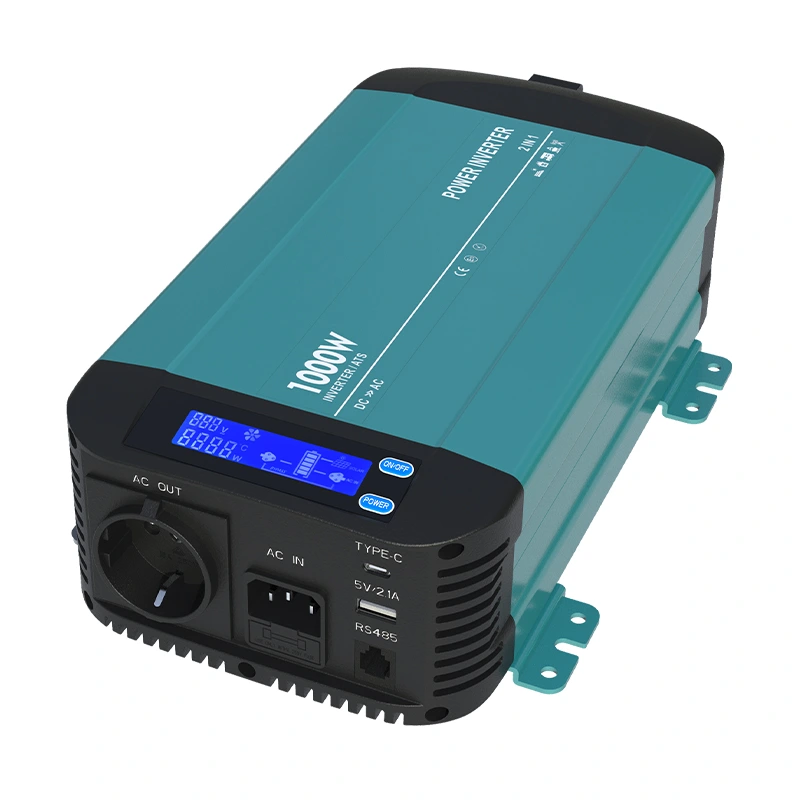

1000w purus sine Undo Inverter Cum bypass Function HK1000PT

Model:HK1000PT

Cum annos experientiae in productione Pure Sine Wave Inverter Kosun amplam Sine Wave Inverter supplere potest. High quality 1000w Purus Sine Undo Inverter Cum Bypass Function HK1000PT multis applicationibus occurrere potest, si opus est, commodo nostro online opportuna opera de ea accipias.

Mitte Inquisitionem PDF Download

depictio producti

Talis est introductio optimae qualitates Pure Sine Undo Inverter, sperans te adiuvare melius intelligere 1000w Purum Sine Undo Inverter Cum Bypass Function HK1000PT. Exspectate clientes novos et veteres pergere ad cooperandum nobis ad melius futurum creandum!

Features:

● Purus sine fluctus output (THD <5%)

Scelerisque imperium fan

High Efficiency Sursum ad XCII%

Instructa in ATS ac AC circuit ruptor

● Translatio temporis minus quam 1 6ms .

●USB:5V / 2.1A / Type-C:Max 35W

RS-CDLXXXV communicationis

Input & Output plene solitudo

Input Praesidium: Reverse verticitatem (Fuse) / sub intentione / Per intentione

Output Praesidium: Short Circuit / ONERO / Plus Calor / Plus intentione

EXEMPLUM		HK1000PT-112	HK1000PT-124	HK1000PT-212	HK1000PT-224
Output	Rating Power	1000 Watt
	Peak Power (Max.2 sec.)	2000 Watt
	Waveform	Purus Sine Wave
	Effectus (Min.)	89%
	Output Voltage(@rated VDC)	100/110/115/120VAC±10%		200/220/230/240VAC±10%
	Output Frequency	50/60HZ±1
	Totalis Harmonic Distortion (THD)	<5%		<5%
Output	DC Voltage	12VDC	24VDC	12VDC	24VDC
	Voltage Range	10.0~16.0VDC	20.0~32.0VDC	10.0~16.0VDC	20.0~32.0VDC
	Non onus Power Consummatio	@12.8VDC	@25.6VDC	@12.8VDC	@25.6VDC
	De Modus @ non Lond Modus	<0.42A	<0.21A	<0.42A	<0.21A
	Fuse	45A×3	45A×2	45A×3	45A×2
AC Input	AC Range	100/110/115/120VAC±10%		200/220/230/240VAC±10%
	Frequency Factory Occasus	50/60 HZ
	Transitus Cie	Latin ATS:Inverter ad utilitatem AC:8~10ms.;Utilitas AC ad inverter: 16~25ms.
Praesidium	BAT.Low Alarm±0.2V	10.8VDC	21.6VDC	10.8VDC	21.6VDC
	BAT.Low Shut-down ± 0.2V	10.0VDC	20.0VDC	10.0VDC	20.0VDC
	BAT.Low Sileo ± 0.2V	12.5VDC	25.0VDC	12.5VDC	25.0VDC
	BAT.Low Shut-down ± 0.2V	16VDC	32VDC	16VDC	32VDC
	BAT.High Sileo ± 0.2	15.8VDC	31.6VDC	15.8VDC	31.6VDC
	Input Praesidium	Reverse verticitatem (Fuse)/Sub intentione/Per intentione Praesidium / AC per current (Fuse)
	Donec output	Instructa in ATS ac AC circuit ruptor
Environment	Laborans Nativ.	0~+60℃
	Repono Nativ.	0~+70℃
	Relativum Umor	Max.90%, non-condensing
Salus&EMC	Salus Signa	EN62109-1:2010, EN62109-2:2011
	Signa EMC	Input Praesidium: Reverse verticitatem (Fuse) / sub intentione / Per intentione
		EN61000-3-3:2013+A1:2019+A2:2021
	E-mark	ECE-R10
Imperium&Signum	LCD Display	Input voltage/output wattage/temerate/output voltage / refrigerationem / opus status
	Remota potestate	RS485
alii	Dimensio (W×H×D)	309×182×87 mm
	Pondus	3.38KG
	Refrigerium	Scelerisque imperium fan
	Communication Portus	RS-485(RJ-11 type iungo)
Nota	1.Value experimentum initus intentionis ad 12.8V/25.6V/50.4V;2. Omnes parametri mensurantur ad onus aestimatum; 25 temperatus ambientis; 3. specificationes mutationibus obnoxiae sunt sine praevia notitia ad ulteriorem emendationem productorum.

Mechanica Drawings:(309x182x87 mm)

EXEMPLUM: HK1000PT
